Room Database

📌 Room Persistence Library is a higher-level abstraction over SQLite that simplifies local database operations in Android apps. It wraps SQLite so we can have easy communication and operations.

---

---

📖 Background — What is SQLite in Android?

• SQLite is the most commonly used local database in Android development
• It is a lightweight, relational DBMS embedded directly into Android OS
• Databases are stored as files on the device and accessed using SQL queries
• Developers can use either SQLiteOpenHelper or the Room Persistence Library

---

⚖️ Why Room over SQLiteOpenHelper?

	SQLiteOpenHelper ❌	Room Library ✅
Boilerplate	Tons of manual code	Eliminated via annotations
Data retrieval	Manual Cursor handling	Clean method calls
Error detection	Runtime errors	Compile-time verification
Ease of use	Verbose and complex	Simple and clean
Memory leaks	Easy to forget cursor.close()	Handled automatically

---

🆚 Code Comparison — SQLiteOpenHelper vs Room

❌ SQLiteOpenHelper — Insert (verbose boilerplate)

public void insert(String name, String description, SQLiteDatabase database) {
    ContentValues contentValue = new ContentValues();
    contentValue.put("NAME", name);
    contentValue.put("DESCRIPTION", description);
    database.insert("PRODUCTS", null, contentValue);
}

❌ SQLiteOpenHelper — Retrieve (painful cursor loop)

Cursor c = database.rawQuery("SELECT * FROM PRODUCTS");

if (c != null) {
    if (c.moveToFirst()) {
        do {
            String name        = c.getString(0);
            String description = c.getInt(1);
            results.add(new Product(name, description));
        } while (c.moveToNext());
    }
}
c.close(); // ⚠️ easy to forget — causes memory leaks!


👉 New here? Read the full guide on https://rushira.in/to-do-note-app-in-android-sqlitedatabase/#sq-lite-database  for deeper understanding.

✅ Room — Same operations, ZERO boilerplate

@Dao
interface ProductDao {

    // replaces all that ContentValues + insert() boilerplate
    @Insert
    fun insert(product: Product)

    // replaces the entire Cursor loop above
    @Query("SELECT * FROM products")
    fun getAll(): List<Product>

    @Delete
    fun delete(product: Product)
}

💡 Key insight: Room eliminates all manual SQL and cursor code. You just define the method and Room generates the implementation at compile time.

---

✅ 3 Key Benefits of Room

1. 🔍 Compile-time Verification of SQL Queries

• Checks SQL for syntax errors and type mismatches at compile time — not at runtime
• Room processes @Entity and @Dao annotations during compilation
• Generates database handling code automatically
• Reduces runtime crashes and improves code quality

2. 🏷️ Convenience Annotations

• Minimizes repetitive and error-prone boilerplate code
• Use @Insert, @Delete, @Query, @Update instead of writing SQL manually

3. 🔄 Streamlined Database Migration Paths

• Simplifies handling schema changes across different app versions
• Room provides built-in features to manage DB migrations efficiently

---

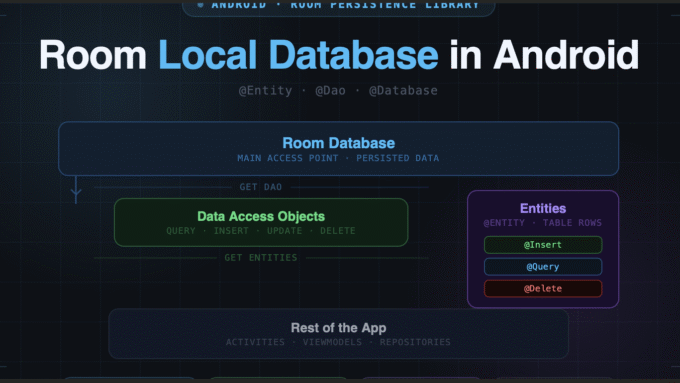

🏗️ Architecture — 3 Primary Components

┌─────────────────────────────────────────────┐
│               Room Database                 │
│                                             │
│    ┌──────────────────────────┐             │
│    │   Data Access Objects    │   Entities  │
│    │         (DAO)            │  ┌────────┐ │
│    │                          │  │ Table  │ │
│    │  • getAll()              │◄─┤ Rows   │ │
│    │  • insert()              │  │ Fields │ │
│    │  • delete()              │  └────────┘ │
│    └──────────────────────────┘             │
│                   ▲                         │
│               Get DAO                       │
└───────────────────┼─────────────────────────┘
                    │
          ┌─────────▼─────────┐
          │   Rest of App     │
          │  (Activities,     │
          │   ViewModels...)  │
          └───────────────────┘

Component 1 — Database Class

• Main access point to persisted data
• Holds the database and provides DAO instances to the app
• Annotated with @Database

Component 2 — Entity

• Data class annotated with @Entity
• Represents a table in the database
• Each instance = one row in the table

Component 3 — DAO (Data Access Object)

• Interface annotated with @Dao
• Provides methods to query, insert, update, and delete data
• The app uses DAO methods to talk to the database

---

🔗 How the Components Relate

App
 │
 ▼  "give me the DAO"
Database Class ──────────────► DAO
                                │
                                │  "get / persist entities"
                                ▼
                            Entities (rows)
                                │
                                │  "get / set field values"
                                ▼
                           Your Object (data class)

---

💻 Implementation — Step by Step

Step 1 — Define an Entity

@Entity(tableName = "contact")
data class Contact(
    @PrimaryKey(autoGenerate = true)
    val id: Long,        // ← auto-increments, you never set this manually
    val name: String,
    val mobile: String
)

How this maps to a database table:

ID	NAME	PHONE
1	John	99999
2	Sean	22222
3	Jack	77777

⚠️ Note: autoGenerate = true means Room assigns the ID automatically — you never set it manually when inserting.

Another example with custom column names:

@Entity
data class User(
    @PrimaryKey val uid: Int,
    @ColumnInfo(name = "first_name") val firstName: String?,
    @ColumnInfo(name = "last_name") val lastName: String?
)

---

Step 2 — Define a DAO

@Dao
interface UserDao {

    @Query("SELECT * FROM user")
    fun getAll(): List<User>

    @Query("SELECT * FROM user WHERE uid IN (:userIds)")
    fun loadAllByIds(userIds: IntArray): List<User>

    @Query("SELECT * FROM user WHERE first_name LIKE :first AND last_name LIKE :last LIMIT 1")
    fun findByName(first: String, last: String): User

    @Insert
    fun insertAll(vararg users: User)

    @Delete
    fun delete(user: User)
}

---

Step 3 — Define the Database Class

The database class must satisfy 3 conditions:

1. Annotated with @Database (includes an entities array)
2. Must be an abstract class that extends RoomDatabase
3. Must define an abstract method for each DAO (zero arguments, returns DAO instance)

@Database(entities = [User::class], version = 1)
abstract class AppDatabase : RoomDatabase() {
    abstract fun userDao(): UserDao
}

---

Step 4 — Usage (Build and Use the DB)

// Build the database instance (do this once, use singleton)
val db = Room.databaseBuilder(
    applicationContext,
    AppDatabase::class.java,
    "database-name"
).build()

// Get DAO and interact with the database
val userDao = db.userDao()
val users: List<User> = userDao.getAll()

⚠️ Important: Always create the database as a singleton — creating multiple instances is expensive and can cause issues.

---

📦 Setup — Add Dependencies

Add to your app’s build.gradle file:

def room_version = "2.6.1"

implementation "androidx.room:room-runtime:$room_version"
kapt "androidx.room:room-compiler:$room_version"

// Optional - Kotlin Coroutines support
implementation "androidx.room:room-ktx:$room_version"

---

🗂️ Quick Reference — Annotations Cheatsheet

Annotation	Used On	Purpose
@Entity	Data class	Marks class as a DB table
@PrimaryKey	Field	Marks the primary key
@ColumnInfo	Field	Maps field to a custom column name
@Ignore	Field	Room ignores this field
@Dao	Interface	Marks interface as a DAO
@Query	Method	Custom SQL query
@Insert	Method	Insert row(s)
@Delete	Method	Delete row(s)
@Update	Method	Update row(s)
@Database	Abstract class	Marks as Room Database

---

📱 Common Use Cases for Local Databases in Android

• 🔧 Storing user preferences and app settings
• 📦 Caching data from remote servers for faster access
• ✍️ Managing user-generated content locally
• 📴 Implementing offline functionality in apps

---

📚 References

Room Persistence Library

https://developer.android.com/training/data-storage/room

---
